SIGNAL PRO

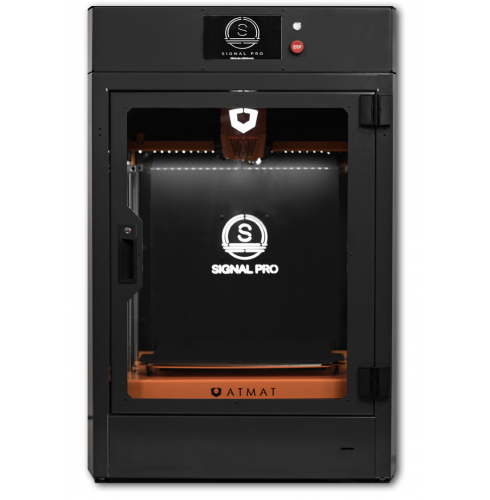

Model ATMAT Signal Pro is a printer created in response to the expectations of our customers, especially those seeking a device with high performance and, at the same time, which provides excellent quality of work. The equipment stands out due to its: Printing precision - even the smallest element is printed with the highest accuracy. Reliability - it can work continuously for many hours, constantly providing high quality prints. Large printing area - fully flexible, which means you can use it to print small items as well as large ones. The printer was made using proprietary technology that ensures stability and the high quality of the utilised technical solutions. The printer is an ideal choice for people starting their adventure with 3D printing, as well as people who work with 3D printing technology every day. It was designed for those looking for fully professional solutions, who always put high quality in the first place.



2 IN 1

MODERN AND FUNCTIONAL

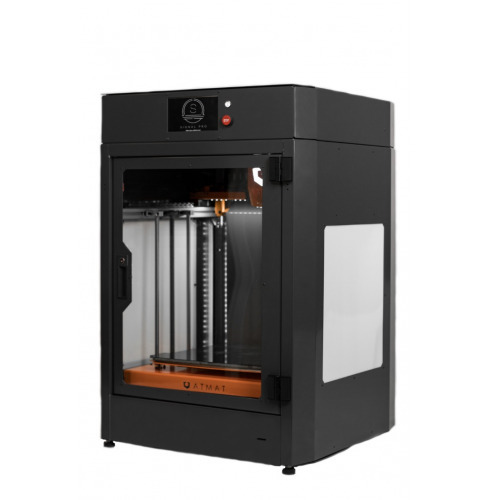

When we designed the ATMAT Signal Pro printer, our goal was to provide functionality and modernity which our customers can enjoy every day. That is why the device was made of a solid aluminium frame providing not only an aesthetic impression, but also certainty of long and trouble-free operation. The materials used to manufacture the ATMAT Signal Pro printer make it robust and extremely precise.





The printer has a working chamber equipped with active temperature control technology. The ventilation and heating system installed in the chamber provides the user with the ability to maintain a constant temperature (with the option of adjusting within a range of up to 50°C). This is extremely important since maintaining the right operating conditions of the device is a key element of the entire printing process. In addition, the chamber protects printed elements against adverse external factors. And this feature is particularly important when printing using materials with high shrinkage characteristic (ABS, PC, or nylon).

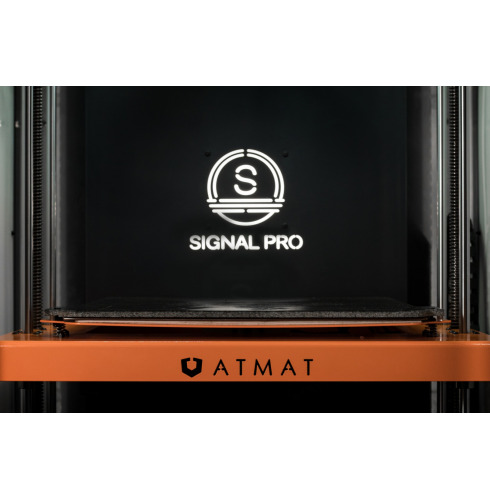

We wanted working with the ATMAT Signal Pro printer to be simple and enjoyable. So we equipped the printer with an automatic table levelling function. Thanks to this option, the ATMAT Signal Pro completely eliminates problems related to correct configuration of the equipment. The function accommodates adjustments related to the to the travel system, thus facilitating the printing process itself. This modern levelling mechanism, combined with a work platform made of granite, not only eliminates the problems associated with the proper setting of the equipment, but also guarantees the high quality of the printed elements - from the very first layer.

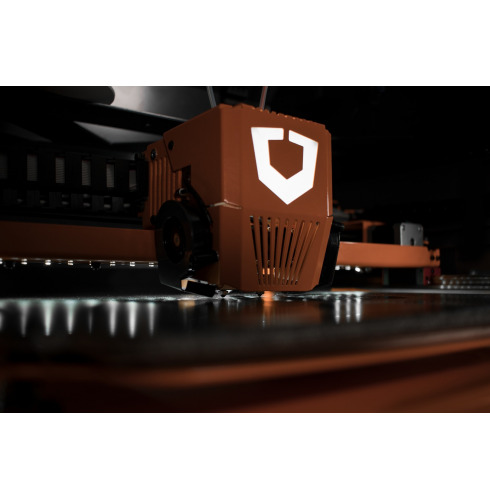

The ATMAT Signal Pro printer has been equipped with a double printing head. The solution allows elements to be printed in two colours, as well as in two different materials. This gives virtually unlimited design possibilities. While providing many printing options we have also taken care of the high level of the printer’s aesthetics. Therefore, when creating complex models (e.g. requiring the use of supports), the printer gives the possibility of using soluble filaments (PVA or HIPS). By using such filaments you can easily achieve a smooth surface effect at the points of contact between different materials.





The ATMAT Signal Pro equipment was engineered primarily for its users - people working with various materials and using different software. Therefore we focused on its full flexibility and the ability to adapt to the individual needs of our customers. Materials - a built-in direct type extruder allows for seamless cooperation of the printer with the wide range of filaments available on the market. The equipment supports both traditional solutions (PLA, PET, or ABS), flexible materials (TPU), as well as more sophisticated and demanding filaments with wood, metals or mineral additives. Software - the hardware is also fully compatible with various types of software used to prepare the printing process. It has been equipped with profiles for both free and commercial versions of slicers.

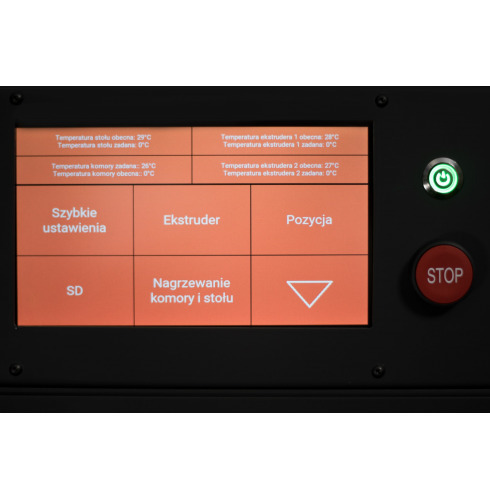

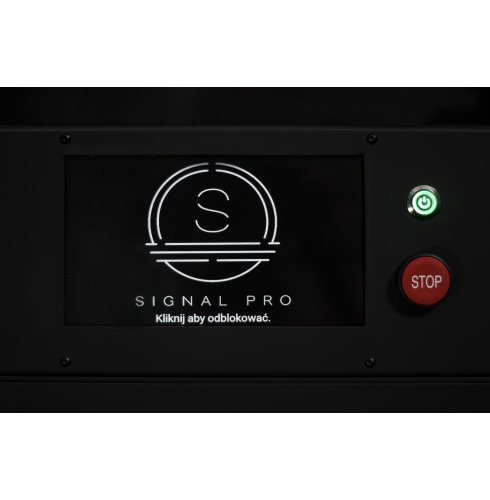

The ATMAT Signal Pro printer has been equipped with a large 7-inch touch screen with an original interface, allowing for very convenient device operation. The intuitive control panel utilize both the basic and advanced functionalities of this printer.





When it comes to our products, we always focus on the highest quality, imprinted both on production, sales and after-sales services. Every single device we make is manufactured in Poland - all products are designed, tested, produced and stored in Poland. Our qualified specialists - engineers with extensive experience - make every effort and do absolutely everything possible to assure products leaving our factory meet the expectations of even the most demanding customers. In addition, we provide fast and fully professional after-sales service (during the warranty period and after). We provide assistance in both the initial configuration of equipment and advise on its further operation.





print technology FFF (FDM)

number of heads 2

number of extruders 2

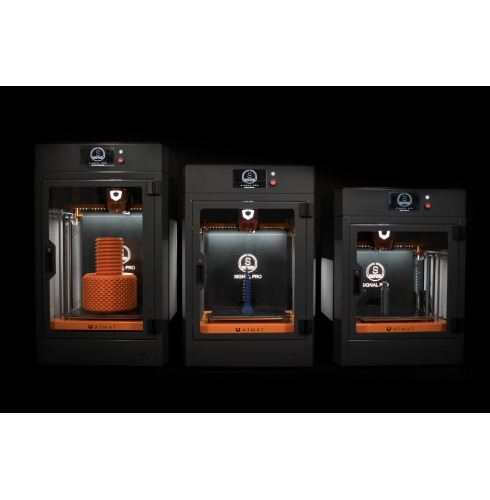

working area X: 300 Y: 300 Z: 300 / 400 / 500 mm -

2 printing heads X: 340 Y: 300 Z: 300 / 400 / 500 mm -

1 printing head layer height 0.07 - 0.6 mm

filament diameter 1.75 mm (2.85 mm optional)

nozzle diameter 0.2 - 1.2 mm

print speed in HQ mode 80 mm/s

positioning accuracy of the X/Y axis 7.5 μm

filling speed 150 mm/s (depending on nozzle diameter)

positioning accuracy of the Z axis 0.625 μm





printer dimensions

ATMAT Signal Pro 300: 610 x 640 x 800 mm, 55 kg

ATMAT Signal Pro 400: 610 x 640 x 900 mm, 60 kg

ATMAT Signal Pro 500: 610 x 640 x 1000 mm, 65 kg

print materials PLA, PET-G, ABS, TPU, HIPS, PVA, PC, Nylon, elastic,

materials with mixtures

support materials PVA, HIPS, others

extruder direct

communication SD card

printing environment closed work chamber

working table granite slab

max. table temperature 140°C

heated chamber yes

max. chamber temp. 50°C

max. head temperature 300°C





power 230 V / 50 Hz

max. power consumption 1000 W

average power consumption

in operation (for PLA) 250 W

software package Simplify, Cura, Repetier-Host, Executor, others

supported formats .gcode
