GALAXY

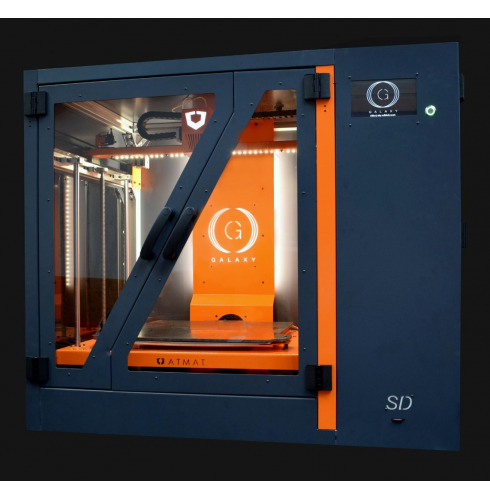

The ATMAT Galaxy model is a printer created for users who want to achieve high printing quality while working in a large format with demanding elements. The device stands out above all similar products in several respects: Printing precision – every single element, even extremely large ones, is printed with extreme accuracy and perfect reproduction of all details. Efficiency – the equipment can run continuously for many hours without interrupting the printing procedure. Versatility – two printing heads allow you to work with the majority of materials available on the market, thus giving great printing possibilities. The printer was made using proprietary technology that ensures stability and high quality of the utilised technical solutions. It is an ideal choice for people working in the industry, because its functionality in conjunction with the large workspace give virtually unlimited printing possibilities.





The ATMAT Galaxy printer will be appreciated especially by companies from the industrial sector (engineering, robotics, automotive, aviation, or architecture) wanting to increase the efficiency of their operations, adding 3D printing technology to them. Our equipment is distinguished by an exceptionally large working field, giving the opportunity to create large-size elements, even with a very high degree of complexity. Long range, allowing large elements to be printed reliably, enabling serial production. All the above make the ATMAT Galaxy printer a full-fledged, heavy-duty device that can be successfully used by virtually any company.





Our device is fully universal, which is due to the double head, giving the possibility of FFF (FDM) printing, and to the fact that it can print using various materials (including PLA, ABS, PET-G, TPU, HIPS, NYLON, Laywood, or Laybrick). The design solutions implemented in the ATMAT Galaxy printer were selected so as to give users absolute freedom in choosing not only the material, but also the printing parameters. Direct extruder is compatible with a wide range of filaments available on the market. Additional convenience in everyday use is the versatility of this device in terms of supported software. In order to prepare models for printing, you can use both free and commercial slicers.

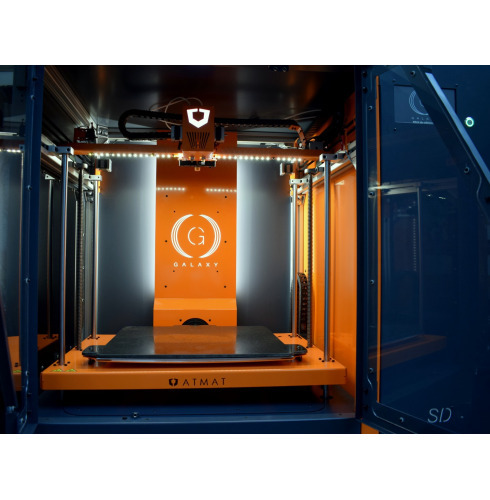

Working in industry requires special arrangements to ensure human safety and uninterrupted operation of devices. This is why the ATMAT Galaxy printer has been equipped with a closed chamber for the multidimensional working field. The chamber has a system of forced ventilation to discharge harmful fumes and chemical compounds generated during the printing process. The system makes working on the device safe both for operators and the natural environment.

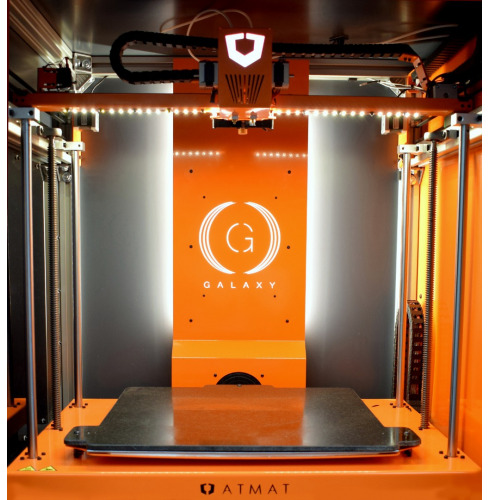

The ATMAT Galaxy printer has been equipped with a tight steel casing and a heating control system. The casing allows a constant, optimal temperature to be maintained within the working chamber. The hot air flow control system used guarantees an appropriate working environment for demanding materials. It ensures maintenance of the right temperature, while preventing the material from delaminating and detaching from the table surface.

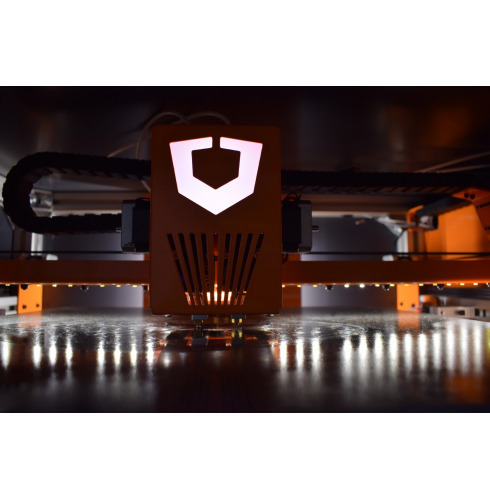

Robust design makes the printer meet all health and safety rules and is fully adapted to be operated in industrial facilities. The ATMAT Galaxy model has LED backlighting installed on the extruder trolley. The LED backlight informs the user about the current status of the printer. If the temperature of the heating elements is rising - the colour of the backlight changes (from white for a cold head to red for a temperature exceeding 200°C). In this way, operators in the vicinity of the printer are quickly informed about its condition and thus can avoid possible burns. To ensure 100% security, the printer has an additional ESTOP button. Using the button you can immediate deactivate the equipment (e.g. in case of a failure or other emergency situation). Operational security requirements are fully fulfilled by the chamber door equipped with a keyed lock. The locked door prevent unauthorised persons from entering the printing area.





When it comes to our products, we always focus on the highest quality, imprinted both on production, sales and after-sales services. Every single device we make is manufactured in Poland - all products are designed, tested, produced and stored in Poland. Our qualified specialists- engineers with extensive experience - make every effort and do absolutely everything possible to assure products leaving our factory meet the expectations of even the most demanding customers. In addition, we provide fast and fully professional after-sales service (during the warranty period and after). We provide assistance in both the initial configuration of equipment and advise on its further operation.





print technology FFF (FDM)

number of heads 2

number of extruders 2

working area Galaxy 400 - X: 400 Y: 400 Z: 500 mm

Galaxy 500 - X: 500 Y: 500 Z: 600 mm

layer height 0.07 - 0.6 mm

filament diameter 1.75 mm (2.85 mm optional)

nozzle diameter 0.2 - 1.2 mm

print speed in HQ mode 80 mm/s

positioning accuracy of the X/Y axis 7.5 μm

filling speed 150 mm/s (depending on nozzle diameter)

positioning accuracy of the Z axis 0.625 μm





printer dimensions Galaxy 400 - 1100 x 750 x 950 mm, 80 kg

Galaxy 500 - 1200 x 850 x 1050 mm, 90 kg

print materials PLA, PET-G, ABS, TPU, HIPS, PVA, PC, Nylon,

elastic, materials with mixtures

support materials PVA, HIPS, others

extruder direct

communication SD card

printing environment closed work chamber

working table granite slab

max. table temperature 140°C

heated chamber yes

max. chamber temperature 50°C

max. head temperature 300°C





power 230 V / 50 Hz

max. power consumption 1200 W

average power consumption

in operation (for PLA) 400 W

software package Simplify, Cura, Repetier-Host, Executor, others

supported formats .gcode
