CUSTOM 3D PRINTING - METAL POWDER SINTERING METHOD

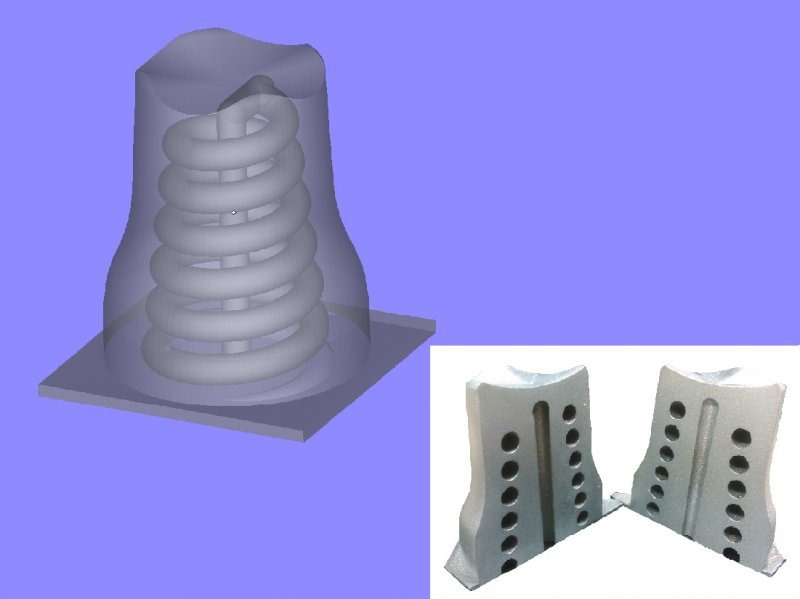

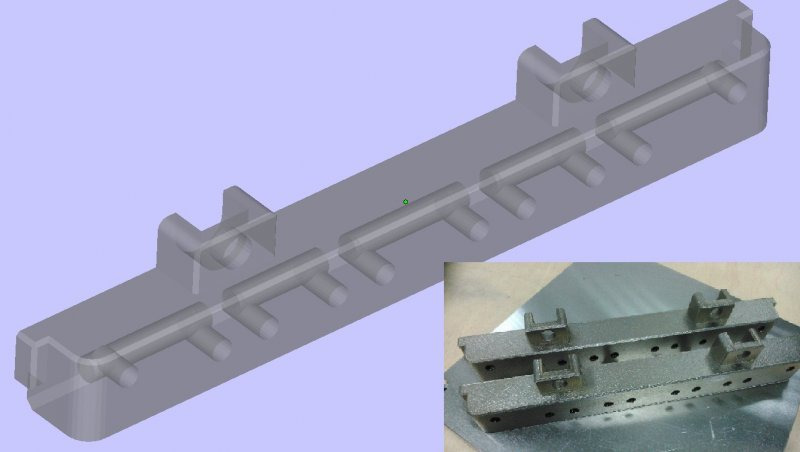

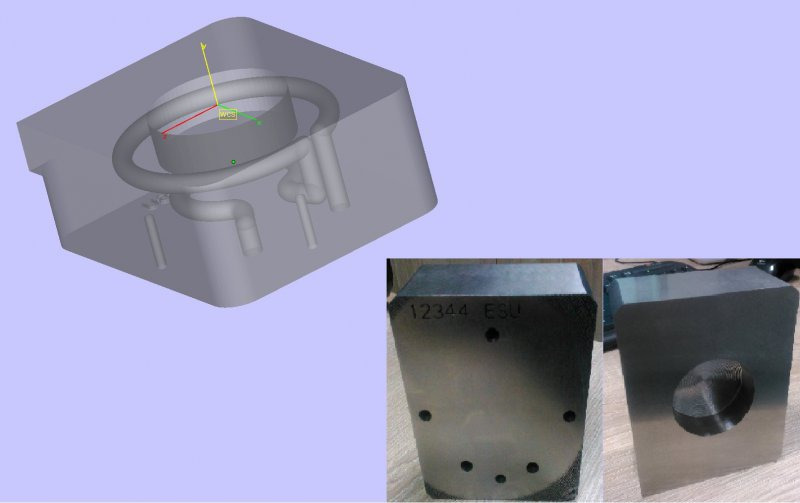

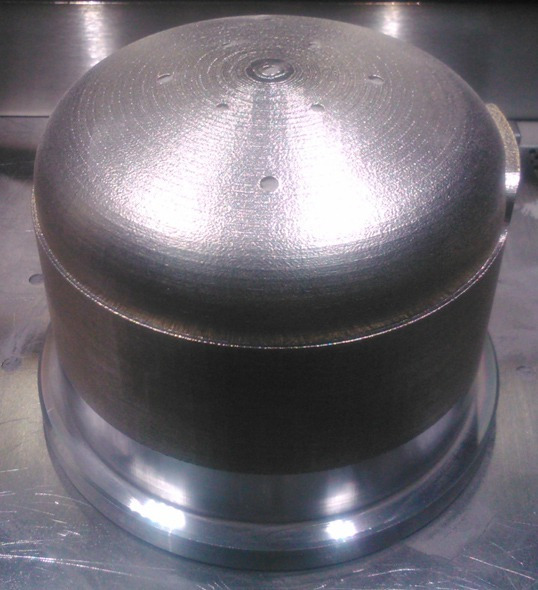

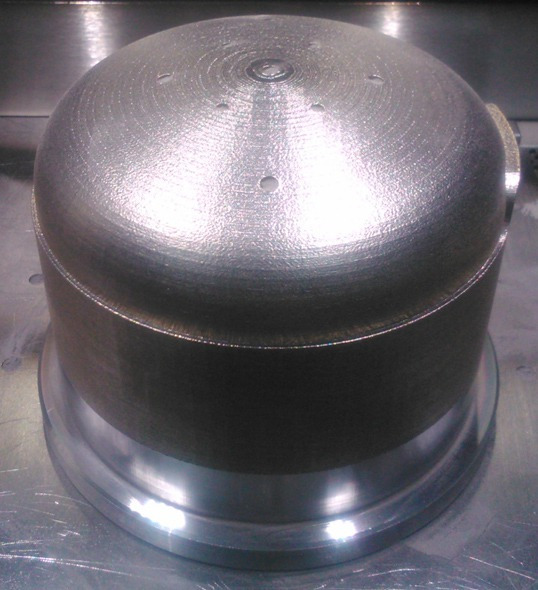

This method enables production of unique and complex metal parts. It is a technology of heat treatment of metal powder from tool steel, where the gradual melting of individual layers of material takes place. The offer is extended to designation and manufacturing of conformal cooling and repairing of broken parts using metal powder.







MARAGING STEEL



EOS MS1 - 18 Mar 300/ EN 1.2709

EOS MaragingSteel MS1 is a martensite-hardenable steel. Its chemical composition corresponds to US classification 18% Ni Maraging 300, European 1.2709 and German X3NiCoMoTi 18-9-5. This kind of steel is characterized by having excellent strength combined with high toughness. The parts are easily machinable after the building process and can be easily post-hardened to more then 50 HRC. They also have excellent polishability.



STAINLESS STEEL



EOS GP1 - 17-4/1.4542

EOS StainlessSteel GP1 is a stainless steel. Its chemical composition corresponds to US clas-sification 17-4, European 1.4542 and German X5CrNiCuNb16-4. This kind of steel is characterized by having good mechanical properties, especially excellent ductility in laser processed state, and is widely used in a variety of engineering applications. This material is ideal for many part-building applications (DirectPart) such as functional metal prototypes, small series products, individualized products or spare parts.



EOS PH1 -  15-5/1.4540

EOS StainlessSteel PH1 is a stainless steel. The chemical composition conforms to the compositions of 15-5 PH, DIN 1.4540 and UNS S15500. This kind of steel is characterized by having excellent mechanical properties, especially in the precipitation hardened state. This type of steel is widely used in a variety of medical, aerospace and other engineering applications requiring high hardness and strength. This material is ideal for many part-building applications such as functional metal prototypes, small series products, individualized products or spare parts.



EOS 316L - 1.4404/ UNS S31673

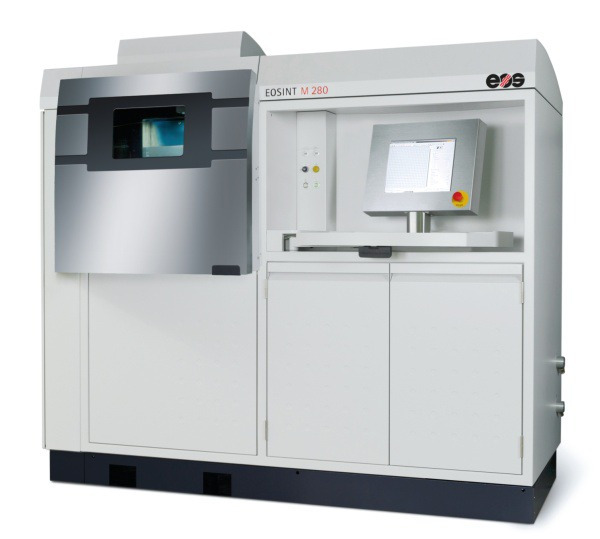

The iron-based alloy EOS StainlessSteel 316L is characterized by a high ductility and corrosion resistance. It can be used in many areas, such as for watch and jewellery making, in the medical field for surgical aids, endoscopic surgery and orthopedics or in aerospace for the manufacture of mounting parts. The material meets the requirements of the ASTM F138 norm (“Standard Specification for Wrought 18Cr-14Ni-2.5Mo Stainless Steel Bar and Wire for Surgical Implants, UNS S31673"). It has been optimized for use on the EOSINT M 280 system. The manufactured parts can be further processed or polished.



EOS 316L VPro - 1.44.4/ UNS S31673

This material together with the HiPro process parameters were designed for high volume production. They offer a high productivity of 316L parts on the EOS M 290 machine.



EOS CX

EOS StainlessSteel CX is a stainless steel characterized by having an exceptional corrosion resistance combined with high strength and excellent hardness. The material is ideal for the manufacture of injection moulding tools with which medical products or products from corrosive plastics are produced. The parts made of EOS StainlessSteel CX are easily machinable and excellent to polish. The precipitation hardened stainless steel is resistant to most corrosive plastics and diluted acids, which makes it the first choice for many demanding applications.



EOS 17-4PH - 1.4542/X5CrNiCuNb17-4,ASTM F899-12b

EOS StainlessSteel 17-4PH is a stainless steel characterized by having an exceptional resistance to abrasion, wear and corrosion. The iron based material is ideal for the manufacture of medical instruments (e. g. surgical tools, orthopedic instrumentation). The parts built from EOS StainlessSteel 17-4PH have chemical composition corresponding to ASTM F899 – 12b (Standard Specification for Wrought Stainless Steels for Surgical Instruments) and can be postprocessed with conventional techniques.



NICKEL ALLOY



EOS IN718 - Inconel718, UNS N07718, AMS 5662

EOS NickelAlloy IN718 is a nickel based heat resistant alloy. Its composition corresponds to UNS N07718, AMS 5662, AMS 5664, W.Nr 2.4668, DIN NiCr19Fe19NbMo3. This kind of precipitation-hardening nickel-chromium alloy is characterized by having good tensile, fatigue, creep and rupture strength at temperatures up to 700°C. The alloy also has outstanding corrosion resistance in various corrosive environments. This material is ideal for many high temperature applications such as gas turbine parts, instrumentation parts, power and process industry parts etc. The material also possesses excellent cryogenic properties and potential for cryogenic applications.



EOS IN625 - Inconel625, UNS N06625,AMS 5666

The precipitation and heat-resistant nickel-chromium alloy EOS NickelAlloy IN625 has a chemical composition corresponding to UNS N06625, AMS 5666F, AMS 5599G, W.Nr 2.4856, DIN NiCr22Mo9Nb. It is characterized by having high tensile, creep and rupture strength. EOS NickelAlloy IN625 is expected to have good corrosion resistance in various corrosive environments. This material is also suitable for building complex parts for high-temperature and high-strength applications. The process achieves material properties that are comparable to wrought metals and by far exceeds those of casting.



EOS HX - UNS N06002

EOS NickelAlloy HX is a heat and corrosion resistant metal alloy powder intended for processingon EOSINT M 280 systems. It is a nickel-chromium-iron-molybdenum alloy in fine powder form. Its composition corresponds to UNS N06002. This type of alloy is characterized by having high strength and oxidation resistance also at elevated temperatures, and is often used up to 1200 °C. Its applications can be found in aerospace technology, e.g. gas turbine parts. Standard laser processing parameters results in full melting across the entire geometry, typically with 40 μm layer thickness. Parts built from EOS NickelAlloy HX can be heat treated and material properties can be varied within a specified range. In both states – as-built and solution heat treated – the parts can be machined, spark-eroded, welded, micro shot-peened, polished, and coated if required. Unexposed powder can be reused.



COBALT CHROME



EOS MP1 - CoCrMo super alloy, UNS R31538, ASTM F75

EOS CobaltChrome MP1 produces parts in a cobalt-chrome-molybdenum-based superalloy. This class of superalloy is characterized by having excellent mechanical properties (strength, hard-ness etc.), corrosion resistance and temperature resistance. Such alloys are commonly used in biomedical applications such as dental and medical implants (note: widely used in Europe but much less so in North America), and also for high-temperature engineering applications such as in aero engines.



EOS SP2 - CoCrMo super alloy

For manufacturing crowns and bridges, the EOSINT M 270 processes a special cobalt chromium molybdenum-based superalloy. It is CE-certified for use in the dental industry (CE 0537). This established dental prosthesis material has seen considerable demand in recent years and is very cost-efficient compared to precious metal alloys. The Schwickerath bonding strength according to EN ISO 9693 using recommended VITA VM13 ceramic is 42 MPa. The amount of extractable ions released from EOS CobaltChrome SP2 laser processed according to Instructions for Use is 1.86 mg / cm² / 7 days determined in the static immersion test according to EN ISO 10993-15.



TITANIUM



EOS Ti64ELI - Ti6AI4V ELI

Due to excellent mechanical properties, corrosion resistance and a high degree of purity, the light metal alloy EOS Titanium Ti64ELI is suitable for demanding industrial applications. On an EOS DMLS system, the material can be used specifically for applications with high detail resolution. It is commonly used in biomedical applications and has a low specific weight. In terms of chemical composition and technical properties, EOS Titanium Ti64ELI meets the requirements of the ASTM F 136 norm.



EOS Titanium - Ti64 Ti6AI4V light metal

EOS Titanium Ti64 is a Ti6Al4V alloy. This well-known light alloy is characterized by having excellent mechanical properties and corrosion resistance combined with low specific weight. The ELI version (extra-low interstitials) has particularly high purity.



ALUMINIUM



AlSi10Mg is a typical casting alloy with good casting properties and is typically used for cast parts with thin walls and complex geometry. It offers good strength, hardness and dynamic properties and is therefore also used for parts subject to high loads. Parts in EOS Aluminium AlSi10Mg are ideal for applications which require a combination of good thermal properties and low weight, e.g. motorsports and aerospace interior. The parts can be machined, spark-eroded, welded, micro shot-peened, polished and coated if required.



EOS AlF357 – AlSi7Mg0,6 light metal

EOS Aluminium AlF357 is an ideal material for applications requiring a combination of low weight and mechanical / thermal load endurance. It is a beryllium free derivative of the A357 (AlSi7Mg0.6) alloy. Parts built of EOS Aluminium AlF357 can be machined, shot-peened and polished in the as-built or heat treated state. For this product, a T6-like heat treatment may be utilized to enhance the overall mechanical properties.
